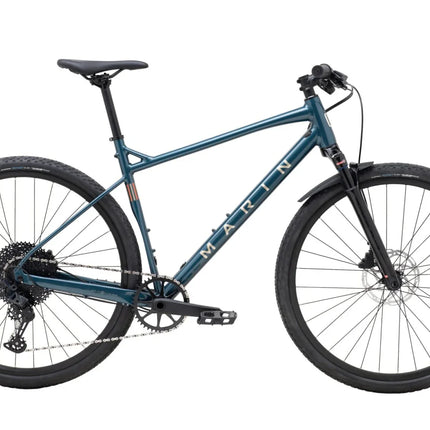

Marin DSX FS 700c - Dark Teal-Gold - Blem

• BLEM Note: This item is sold as a BLEM, it has slight blemishes due to minor cosmetic damage most likely from poor packaging or handling. Bike is new and unused with visual damage only and does not affect the structural integrity or performance of the product. Please review the provided images carefully before purchase.
• Details to follow

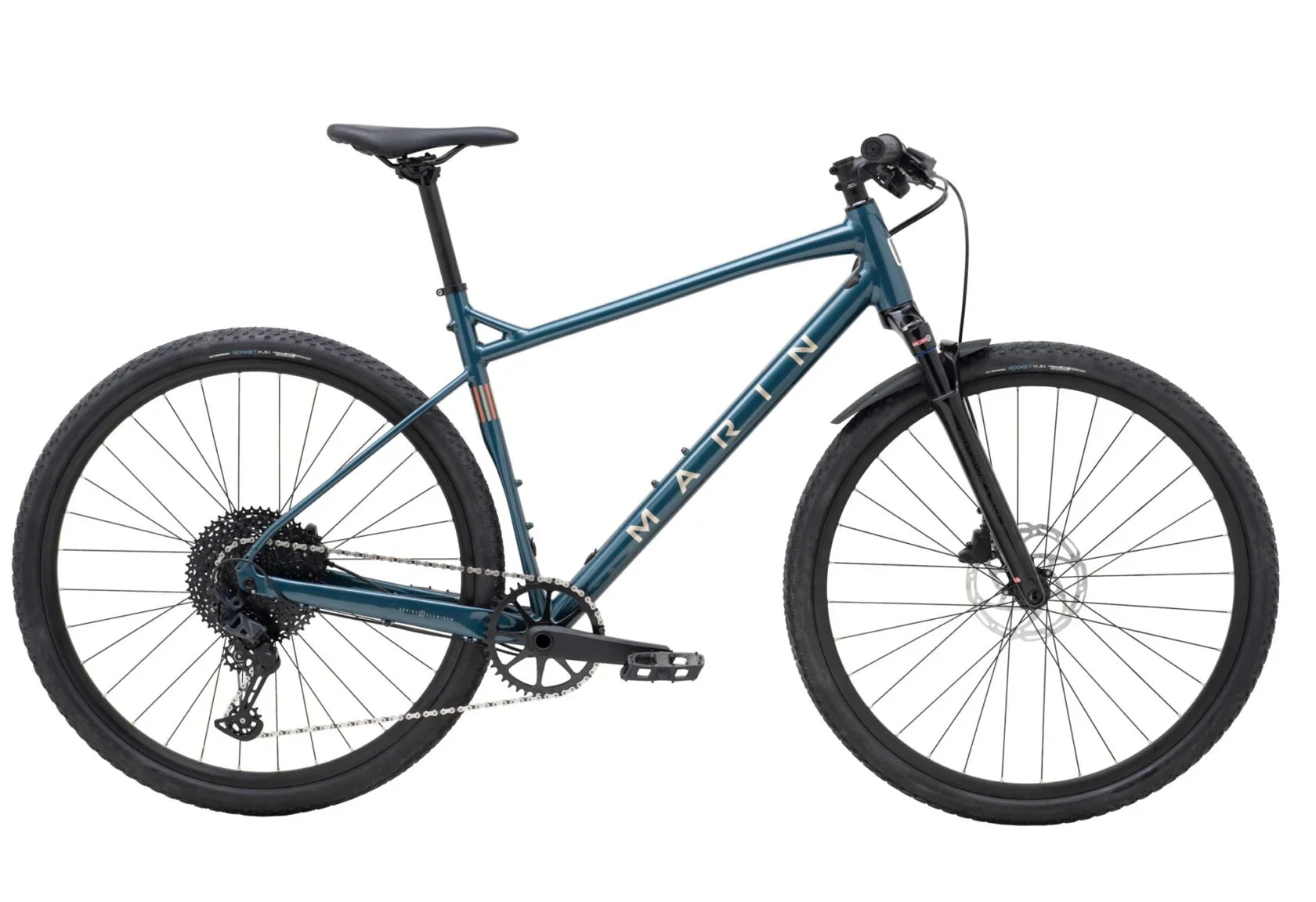

Marin DSX FS 700c - Dark Teal-Gold

Whether you're conquering gravel roads, hitting mountain trails, or commuting across mixed surfaces, the Marin DSX FS is designed to deliver unrivaled fun and versatility. It’s the bike that blurs the lines between gravel and mountain biking, proving that you don’t have to choose between the two.

Unmatched Versatility

The Marin DSX FS takes the concept of a gravel bike to new heights with its robust off-road capabilities. Equipped with a 60mm SR/Suntour GVX LOR suspension fork, this bike is built to handle everything from rugged trails to smooth pavement. The 12-speed Shimano SLX drivetrain ensures seamless shifting and reliable performance, while the Vee Tire Co tires provide excellent grip and durability. Shimano hydraulic brakes offer dependable stopping power, giving you confidence on every ride.

Key Upgrades from the DSX 2

• SR/Suntour GVX LOR Suspension Fork: Features 60mm of travel and an air spring for enhanced comfort and control on rough terrain.
• Shimano SLX 12-Speed Drivetrain: Provides precise and dependable shifting across a wide range of gears.

Technology Highlights

Series 3 & Series 2 Frames The DSX FS is built with a butted and formed Series 3 6061 aluminum frame, featuring internal routing, 142x12mm thru-axles, flat mount disc brakes, and eyelets for racks and fenders. For those opting for the DSX (base) model, it comes with a Series 2 6061 aluminum frame with similar features but is tailored to provide a solid foundation for a variety of riding styles.

Tire Clearance The DSX FS comes standard with 700x45mm tires, with ample clearance to accommodate up to 700x50mm rubber, ensuring versatility across different surfaces and conditions.

Disc Brakes The latest flat mount disc brake standard on the DSX FS offers smooth, controlled stopping power in all conditions with minimal maintenance, ensuring your rides are both safe and enjoyable.

Dropper Post Routing As dropper posts become increasingly popular for gravel racing and rough terrain riding, the DSX FS features internal dropper post routing, making it easy to upgrade and enhancing your ride comfort and control.

The Marin DSX FS is the perfect companion for those who crave adventure and versatility. Whether you’re taking on a challenging trail or commuting through city streets, this bike is ready to handle it all with style and efficiency.

Specifications:

Frame

• Model: Series 3 DSX
• Material: 6061 Aluminum
• Geometry: Suspension Adjusted
• Head Tube: Tapered
• Bottom Bracket: Relieved BB
• Cable Routing: Internal
• Mounts: Mudguard and Rack
• Disc Mount: Flat Mount Disc
• Axle: 142x12mm Thru-Axle

Fork

• Model: SR/Suntour GVX LOR
• Travel: 60mm
• Spring: Air
• Adjustments: Rebound, Lockout
• Mounts: Integrated Fender Mounts

Rims

• Material: Aluminum
• Type: Double Wall
• Inner Width: 21mm
• Disc Specific
• Tubeless Compatible

Hubs

• Rear Hub: Forged Aluminum, 142x12mm, Disc Specific, 32H
• Front Hub: Forged Aluminum, 100x12mm, Disc, 32H

Spokes

• Material: Black Stainless Steel
• Gauge: 14g

Tires

• Brand: Vee Tire Co.
• Model: Rocket Man
• Size: 700x44mm

Drivetrain

• Rear Derailleur: Shimano SLX, RD7100, 12-Speed
• Front Derailleur: N/A
• Shift Lever: Shimano Deore, SLM6100, 12-Speed
• Crankset: Forged Aluminum, 42T Steel Narrow Wide Chainring
• Bottom Bracket: Sealed Outboard Bearing
• Chain: KMC X12
• Cassette: SunRace, 12-Speed, 11-51T

Brakes

• Front Brake: Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
• Rear Brake: Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor
• Brake Levers: Tektro Hydraulic

Components

• Handlebar: Marin Mini Riser
• Stem: Marin 3D Forged Alloy
• Grips: Marin MTB
• Headset: FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
• Seatpost: Marin Alloy
• Saddle: Marin DSX
• Pedals: Nylon Platform

Extras

• Axles: Bolt-On Thru-Axles Front and Rear

Note: Specifications, pricing, and availability are subject to change without notice.
